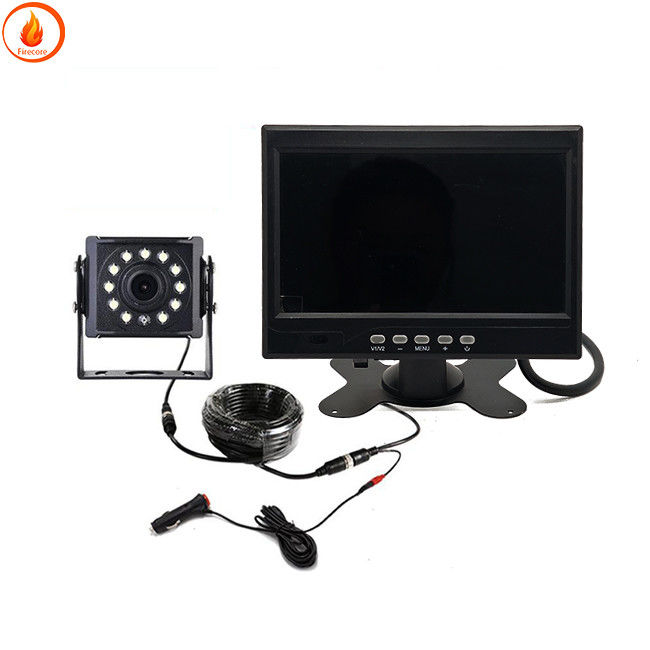

Telecamera di sorveglianza video 36V del veicolo

Sistema di sorveglianza delle telecamere del veicolo Camion di sorveglianza video AI allarme fotocamera inversa ad alta definizione

Distribuzione di telecamere in auto:
Attualmente le telecamere montate sulle auto sono principalmente suddivise in cinque categorie in base alla loro posizione di installazione:telecamere a vista frontale telecamere a vista circondante telecamere a vista posteriore telecamere a vista laterale e telecamere integrate

Fotocamera a vista frontale:  mainly installed on the front windshield to achieve visual perception and recognition functions during driving   It can be divided into front view main camera  front view narrow angle camera   and front view wide angle camera according to their functions
Camera principale di fronte:  This camera is used as the main camera in the ADAS system of L2   The field of view angles are generally 30 °   50 °  60 °   100 °   and 120 °  and the detection distance is generally 150 - 170 meters    The camera output format is RCCB or RCCC

Fotocamera grandangolare rivolta in avanti:  The main function of this camera is to recognize objects that are close in distance   mainly used in urban road conditions   low - speed driving and other scenes   Its field of view angle is between 120 °  - 150 °    and the detection distance is about 50 meters  After the large - scale installation of the 8MP lens in subsequent vehicles   this camera is not needed

Fotocamera a angolo stretto vista frontale:  The main function of this camera is to recognize targets such as traffic lights and pedestrians   Generally   narrow angle lenses are used  and lenses around 30 - 40 ° can be selected   And the pixels of this lens are generally the same as those of the front facing main camera  The camera adopts a narrow angle  has higher pixel density and farther detection distance   and can generally detect up to 250 meters or even longer distances

Dopo l'installazione di una telecamera da 8MP la FOV della telecamera principale anteriore può raggiungere i 120° che potrebbero non essere più necessari La distanza di rilevamento è di circa 60 metri

Camera di sorveglianza:  mainly installed around the vehicle body   usually using 4 - 8 cameras   which can be divided into forward facing fisheye camera   left facing fisheye camera    right facing fisheye camera   and rear facing fisheye camera   Used for displaying panoramic panoramic view function   as well as visual perception and object detection integrating parking function    The commonly used color matrix is RGGB  as there is a need for color restoration

Siamo un produttore professionale di ricerca e sviluppo, produzione e monitoraggio dei veicoli

Registratore video auto macchina fotocamera auto usb fotocamera auto display usb fotocamera

Si prega di contattarci via e-mail: firecore1688@163.com
