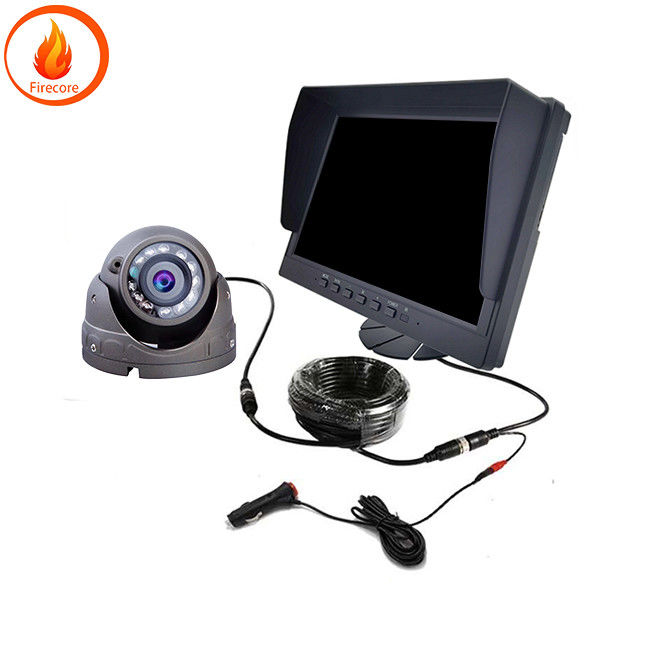

Telecamera a vista frontale montata 24v Monitor di telecamera a vista posteriore

Sistema di monitoraggio con telecamera del veicolo

Distribuzione di telecamere in auto:
Attualmente le telecamere montate sulle auto sono principalmente suddivise in cinque categorie in base alla loro posizione di installazione:telecamere a vista frontale telecamere a vista circondante telecamere a vista posteriore telecamere a vista laterale e telecamere incorporate

Fotocamera a vista frontale:  mainly installed on the front windshield to achieve visual perception and recognition functions during driving   It can be divided into front view main camera    front view narrow angle camera   and front view wide angle camera according to their functions

Camera principale di fronte:  This camera is used as the main camera in the ADAS system of L2    The field of view angles are generally 30 °  50 °    60 °   100 °    and 120 °   and the detection distance is generally 150 - 170 meters    The camera output format is RCCB or RCCC

Forward looking wide - angle camera   The main function of this camera is to recognize objects that are close in distance    mainly used in urban road conditions   low - speed driving and other scenes    Its field of view angle is between 120 ° -150 °   and the detection distance is about 50 meters   After the large - scale installation of the 8MP lens in subsequent vehicles    this camera is not needed

Fotocamera a angolo stretto vista frontale:  The main function of this camera is to recognize targets such as traffic lights and pedestrians   Generally   narrow angle lenses are used    and lenses around 30-40 ° can be selected   And the pixels of this lens are generally the same as those of the front facing main camera    The camera adopts a narrow angle     has higher pixel density and farther detection distance   and can generally detect up to 250 meters or even longer distances

Dopo l'installazione di una telecamera da 8MP la FOV della telecamera principale anteriore può raggiungere i 120° che potrebbero non essere più necessari La distanza di rilevamento è di circa 60 metri

Camera di sorveglianza:  mainly installed around the vehicle body   usually using 4 - 8 cameras   which can be divided into forward facing fisheye camera   left facing fisheye camera    right facing fisheye camera    and rear facing fisheye camera    Used for displaying panoramic panoramic view function    as well as visual perception and object detection integrating parking function   The commonly used color matrix is RGGB    as there is a need for color restoration

Camera retrovisoria: generalmente installata sul bagagliaio, principalmente per l'assistenza al parcheggio L'angolo di campo visivo è compreso tra 120 e 140 gradi e la distanza di rilevamento è di circa 50 metri

Fotocamera a vista laterale:  installed at the B - pillar or vehicle rearview mirror    the field of view angle of this camera is generally 90 ° -100 °   and the detection distance is about 80 meters   The main function of this camera is to detect lateral vehicles and bicycles

Fotocamera laterale e posteriore:  generally installed at the front fender of the vehicle   the field of view angle of this camera is generally around 90 °   and the detection distance is also about 80 meters    It is mainly used for scene applications such as vehicle lane changing and merging into other roads

Siamo un produttore professionale di ricerca e sviluppo, produzione e monitoraggio dei veicoli

Registratore video auto macchina fotocamera auto usb fotocamera auto display usb fotocamera

Si prega di contattarci via e-mail: firecore1688@163.com
